2-Phase Hybrid Step Motor
39BYGM 0.9° |
|
 |
步距角Step Angle ------------------------------------- 0.9°
环境温度 Ambient Temperature -------------------- 25— +40℃
温升 Temperature Rise ---------------------------------- 85K
绝缘电阻 Insulation Resistance ------------ 500VDC 100MΩMin
绝缘等级 Insulation -------------------------------- Class B
绝缘强度 Dielectric Strength ---------------- 500VAC 1minute
径向跳动 Radial Play ---------------------------- 0.02mm Max
轴向间隙 End Play ------------------------------- 0.08mm Max |

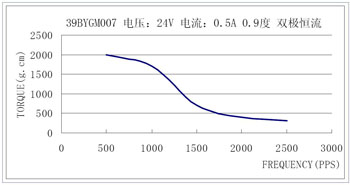

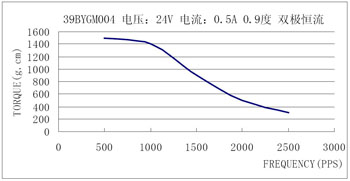

| Frequency-torque characteristics 矩频特性 |
|
 |
 |
| Wiring Diagram 接线图 |
|
 |
 |
|
|
